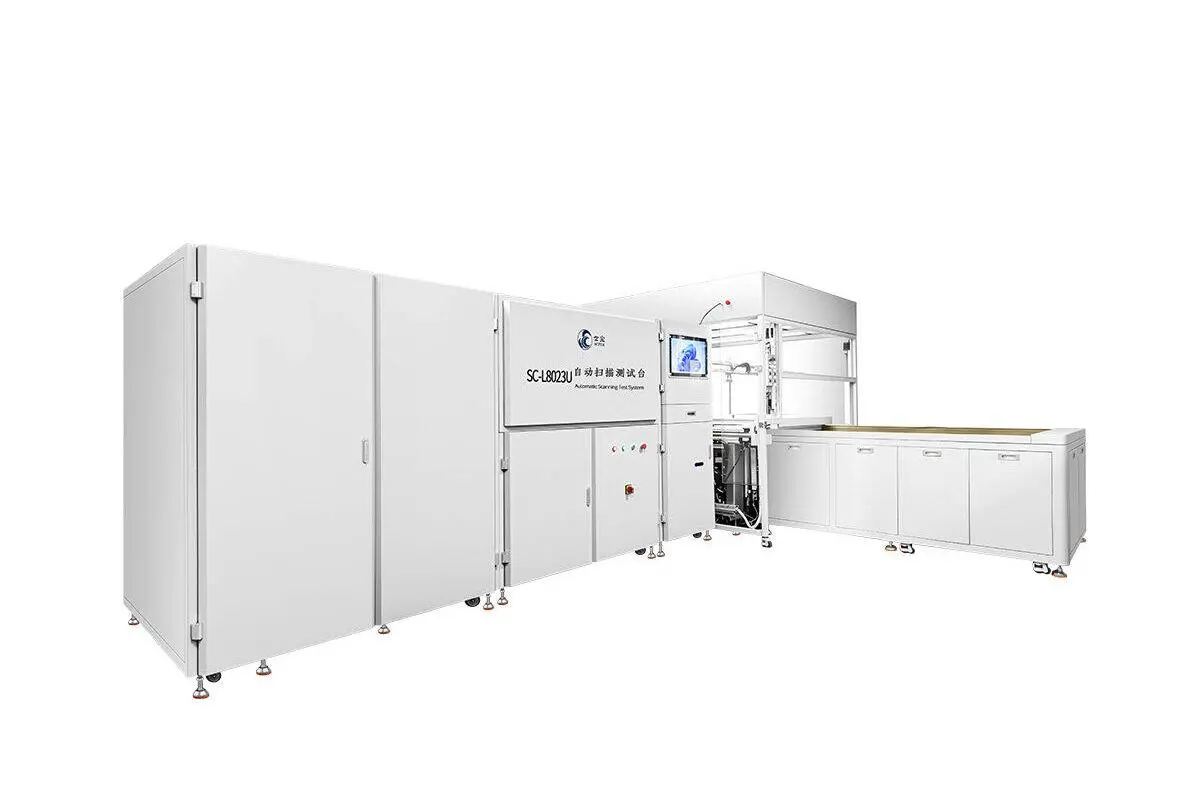

Sistema de prueba de escaneo automático SC-L8023/U

Para pruebas de filtros H10-U17. Se pueden probar tanto el filtro de panel como el filtro de banco en V.

Reflejos

Según EN 1822-4, ISO 29463-4, EN 1822-5, ISO 29463-5, GB/T 6165, etc..

Parámetro del producto

Caudal	500~4500 m³/h
Presión diferencial	0~800 Pa
Filter dimensions	Max. 12601260400mm Min. 15015050milímetros(1 probe), 35015050milímetros(4 probes)
Filter classes	H10~U17, 85%~99.9999995%@0.1μm
Aerosol de prueba	DEHS
Contador de partículas	8 channels, 0.1,0.15,0.2,0.25,0.3,0.5,0.7,1.0µm
Scan speed	≤10 cm/s
Sampling probes	1 or 4 probes, 66*15milímetros
Compressed air supply	＞7 kg/c㎡
Fuente de alimentación	AC 380V, 50Hz
Dimensiones	570018001800 milímetros

Horizontal design, filters placed horizontally. The total length is 5.7 metro, small footprint.
Automated scanning, just install the filter and set up the work order.
With Lighthouse particle counters, can perform full coverage point by point scanning leak detection for ULPA filters.
Automatically generate a leak map, then use the manual leak rescan to accurately locate the leak points.
Automatic aerosol concentration adjustment for greater convenience.
Particle counters self-cleaning, saving labor and extending service life.
The equipment can be invested in stages. 1 probe model, can be upgraded to 4 probes.
Más que 10 tests, including counter and system self-cleaning, dust generation stability, and concentration uniformity, etc., ensure the stability and reliability
If equipped with integral flow hood, integral filter efficiency can be determined.
