SC-L8023U
Scince
According to
EN 1822-4,1S0 29463-4，EN 1822-5IsO 29463-5,GB/T 6165, etc
Test indexes
Filter efficiency
Pressure drop

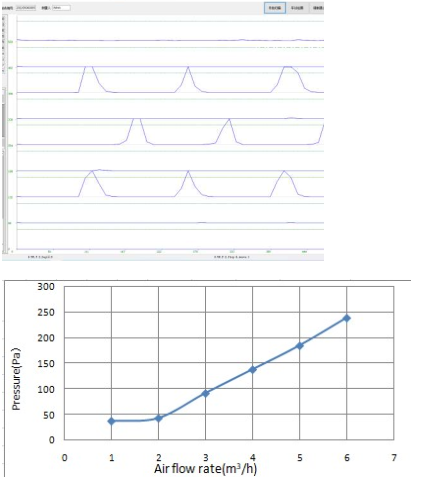

Air volume vs. resistance(pressure drop) curve
Leak detection by scan method
Advantages

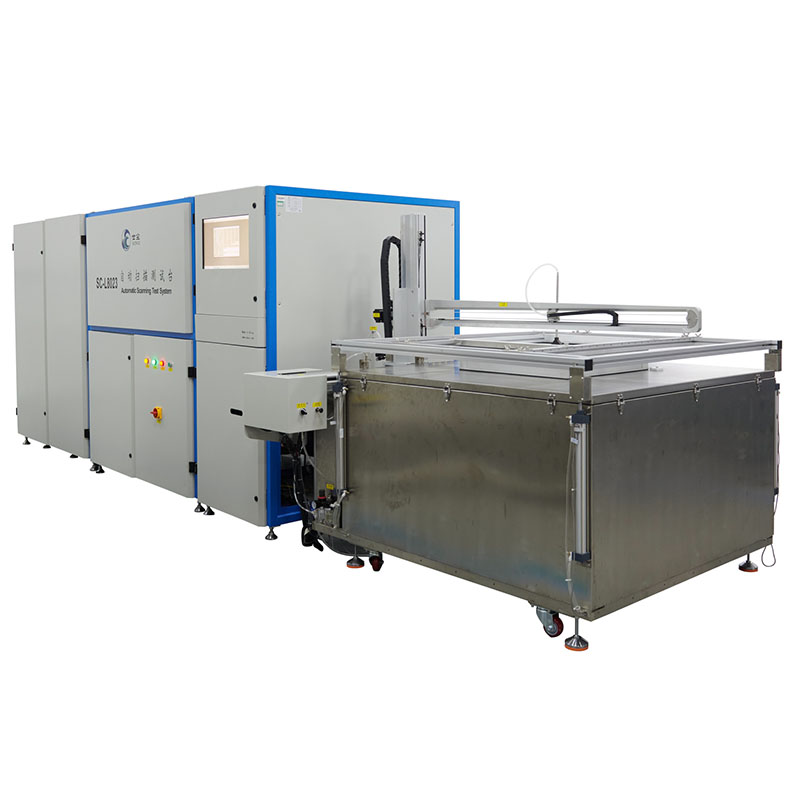

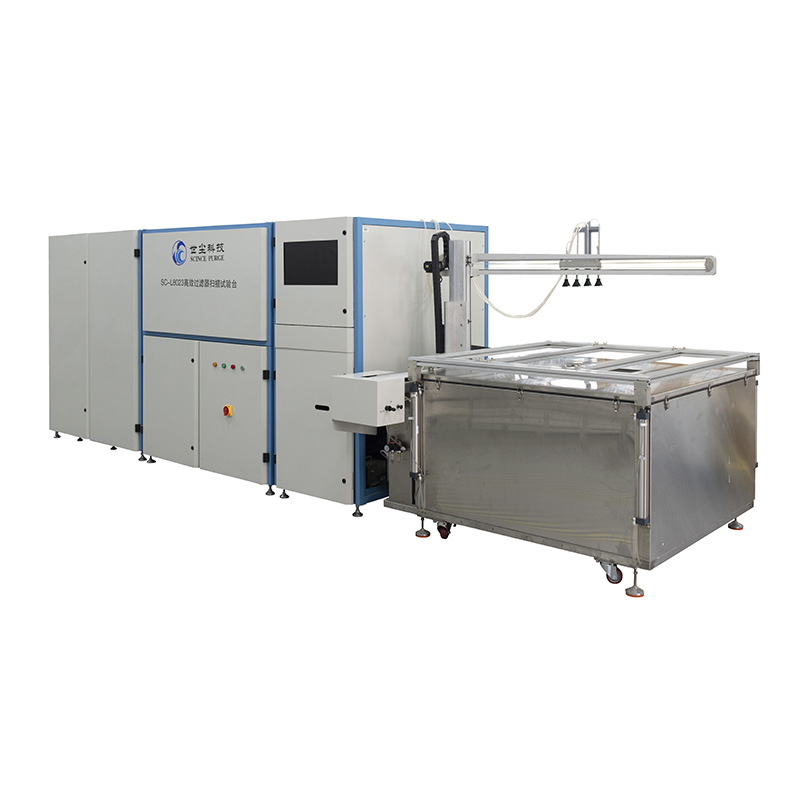

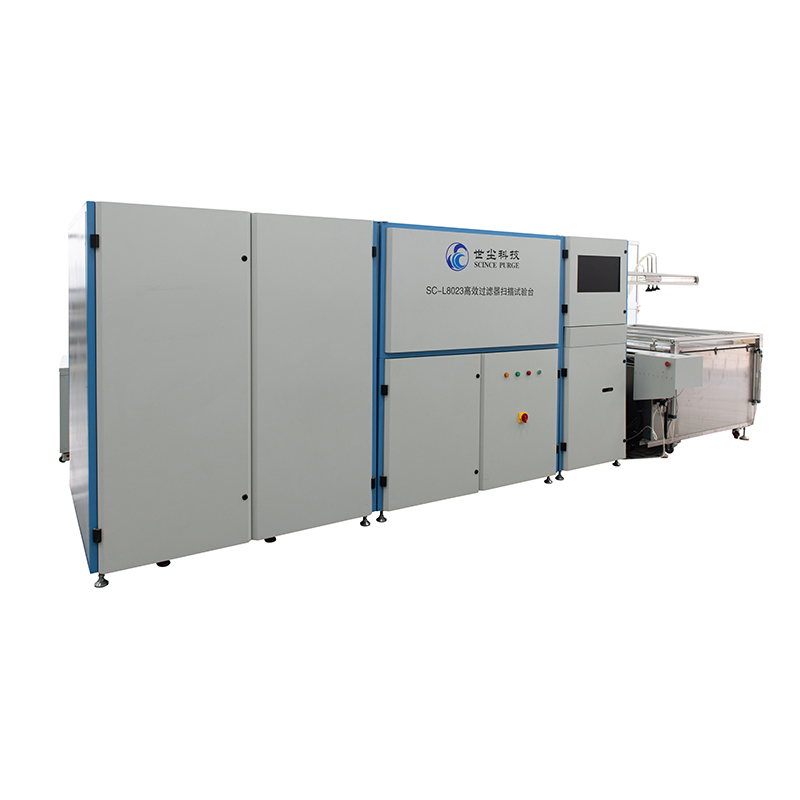

Horizontaldesign,filtersplacedhorizontally. The total length is 5.7 m,small footprint.

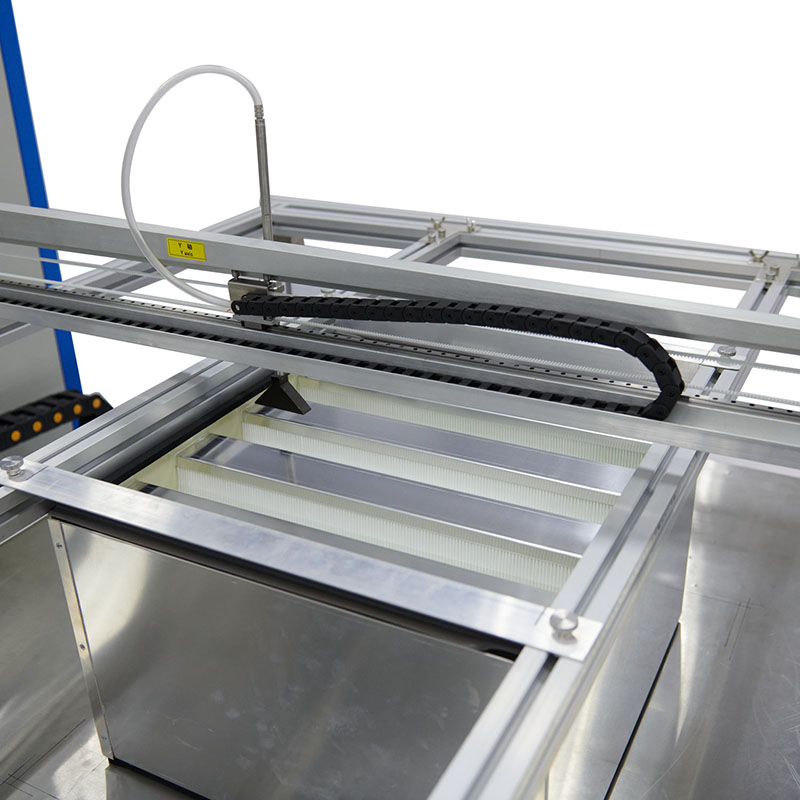

Automated scanning, just install thefilter and set up the work order.
With Lighthouse partice counters, canperform full coverage point by pointscanning leak detection for ULPA filters.
Automatically generate a leak map, thenuse the manual leak rescan toaccurately locate the leak points.
Automatic aerosol concentration adjustment for greater convenience.
Particle counters self-cleaning, savinglabor and extending service life.
The equipment can be invested instages. 1 probe model, can be upgradedto 4 probes.
More than 10 tests, including counter and system self-cleaning，dust generation stability, and concentration uniformity, etc., ensure the stability and reliability

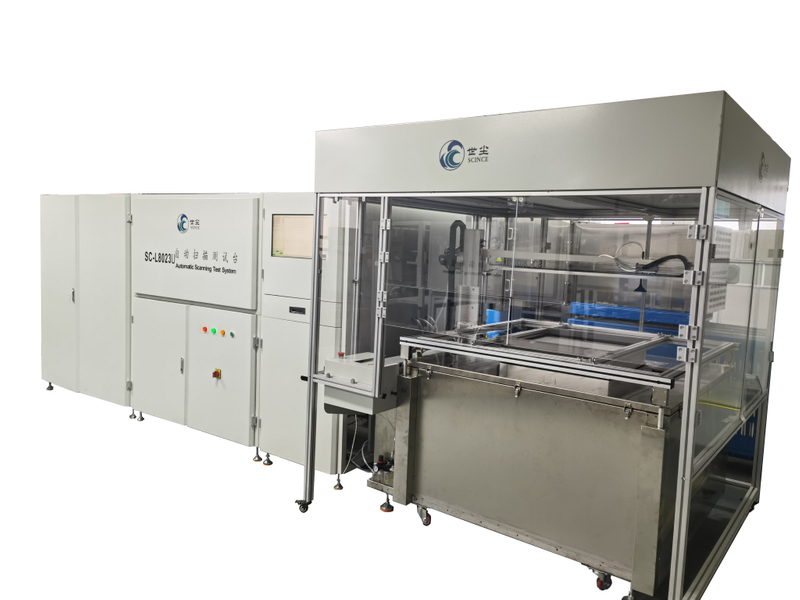

If equipped with integral flow hood integral filter efficiency can be determined.
Software and Results
PLC and computer control data collection anddevice actions, with a data collection time ofmilliseconds. The computer analyzes the dataand displays segmented two-dimensional images on LCD screen, real-time observation of the entire scanning and testing process.

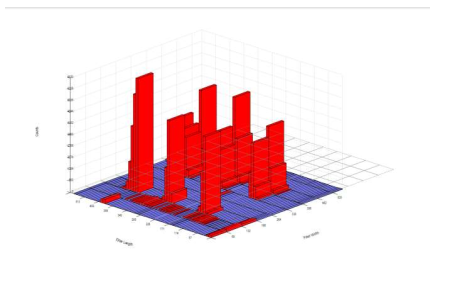

A4 report will generated automatically afterthe test, and all information will reflect in thereport. 3D image can be generated.
Configure a label printer, test results can beprinted as adhesive label, pasted on the filter.
Technical Data
Flow rate: 500~4500 m3/h
Differentia pressure: Range 0~500 Pa, Accuracy 士1% F·S
Filter dimensions: Max.1260x1260x400mm
Min.150x150x50mm(1 probe)
350x150x50mm(4 probe)
Filter classes: H10~U17, 85%~99.9999995%@0.1um
Test aerosol: DEHS
Particle counter: 8 channels, 0.1,0.15,0.2,0.25,0.3,0.5,0.7,1.0um
Scan speed: <10 cm/s
Sampling probes: 1 or 4 probes, 66X15mm
Compressed air supply: >7 kg/cm2
Power supply: AC 380V 50Hz
Dimensions: 5700x1800x1800mm
