Air Filter Performance Testing Systems for HVAC & General Ventilation
Testing systems designed for air filter manufacturing and laboratory verification.
Supporting quality control and performance evaluation according to ISO 16890 and related international standards.
Ensuring Filter Performance Consistency Across Production
Air filter performance must remain stable across production batches.
Manufacturers need reliable testing methods to verify filtration efficiency, pressure drop, and product consistency according to ISO 16890.
SCPUR provides integrated testing solutions for HVAC and general ventilation filters.
Our systems support automated ISO 16890 performance evaluation, resistance measurement, and production quality control, helping manufacturers maintain stable and repeatable product performance.
Challenges in HVAC Filter Testing and SCPUR Solutions
For HVAC and general ventilation filters, ISO 16890 testing introduces new requirements for performance evaluation, production efficiency, and data management. SCPUR systems simplify these testing challenges.

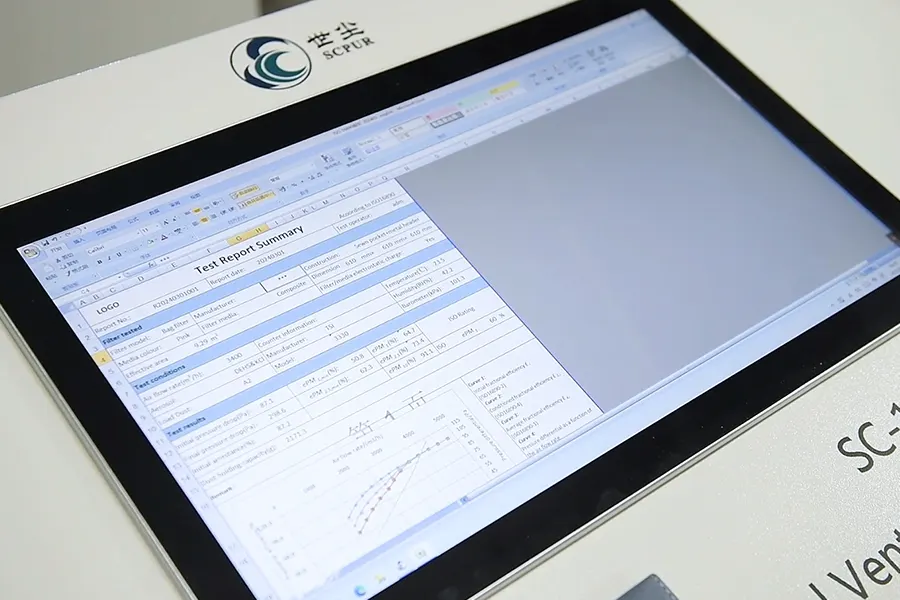

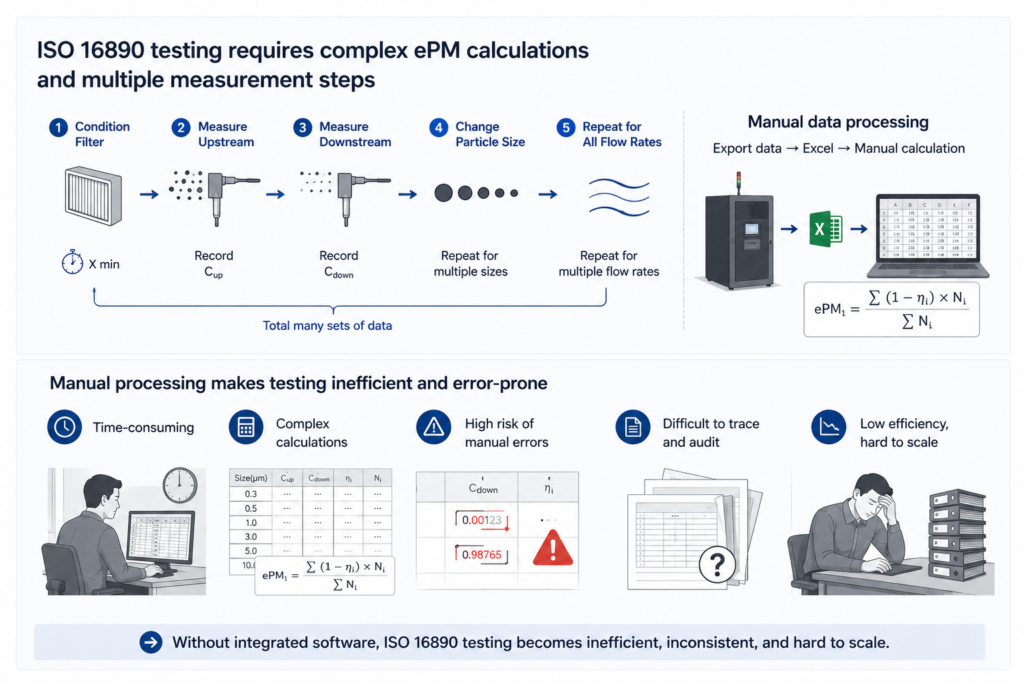

ISO 16890 testing requires complex ePM calculations and multiple measurement steps. Manual data processing makes testing inefficient and increases the risk of errors.

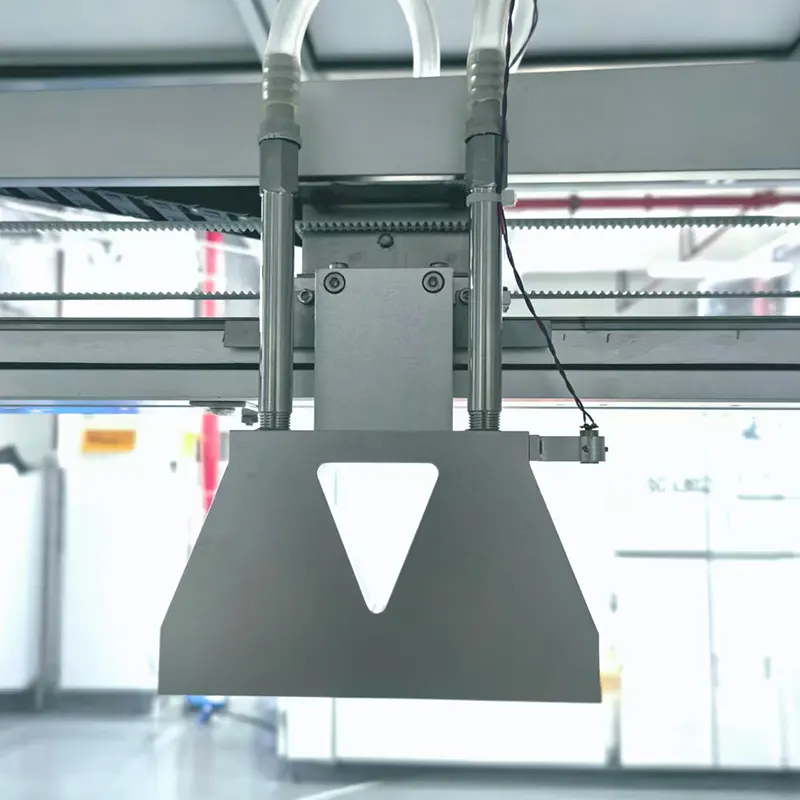

High-Speed Automated Scanning: We deploy robotic XYZ-axis scanning with speeds up to 40mm/s, automating 100% of inspections to ensure consistency at mass-production speeds.

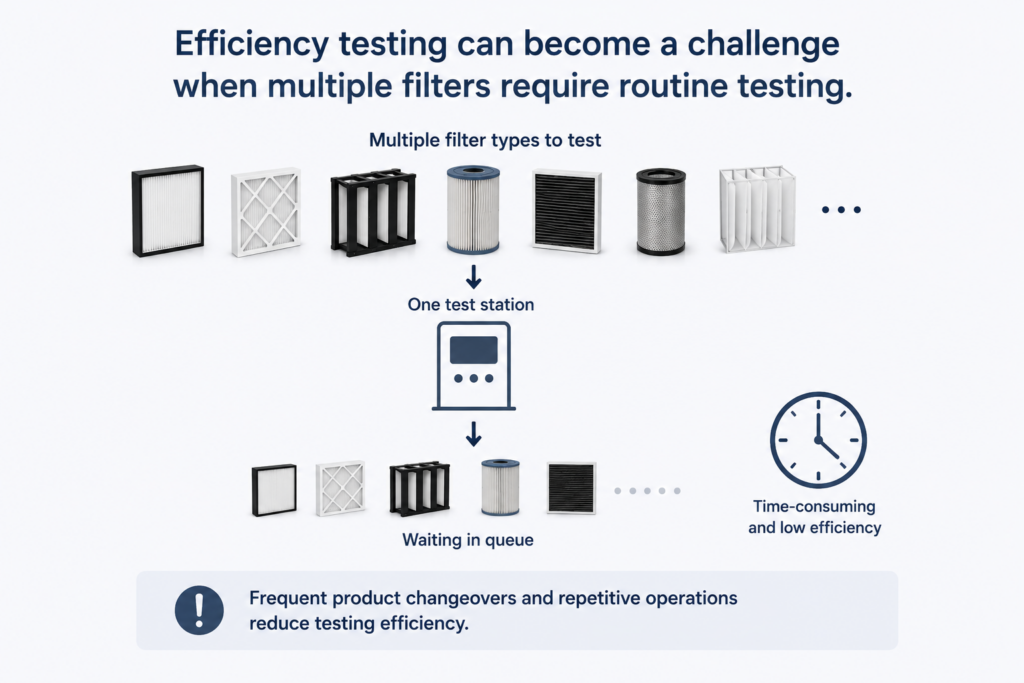

Efficiency testing can become a production bottleneck when testing large numbers of filters.

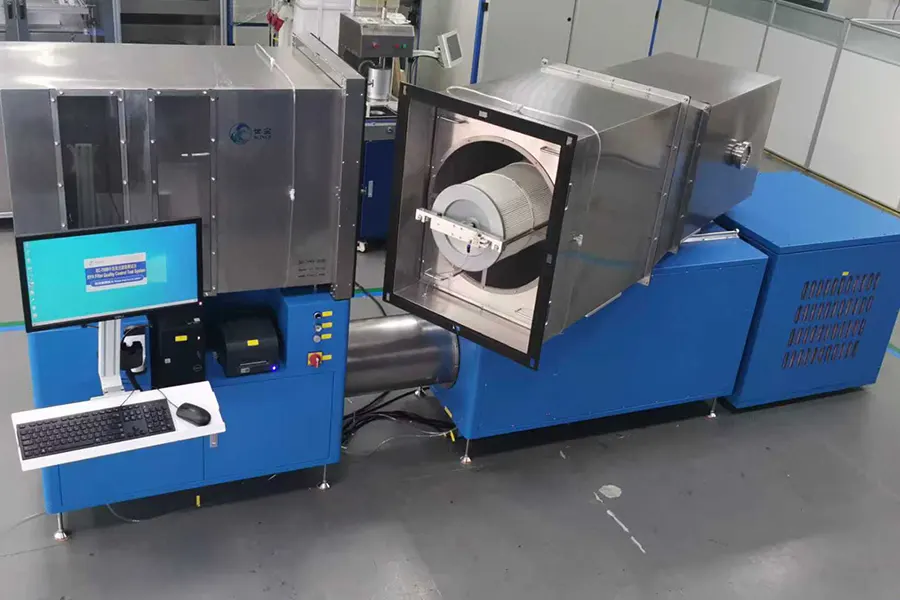

Automated testing significantly increases testing speed while maintaining reliable measurement results, supporting efficient quality control in manufacturing environments.

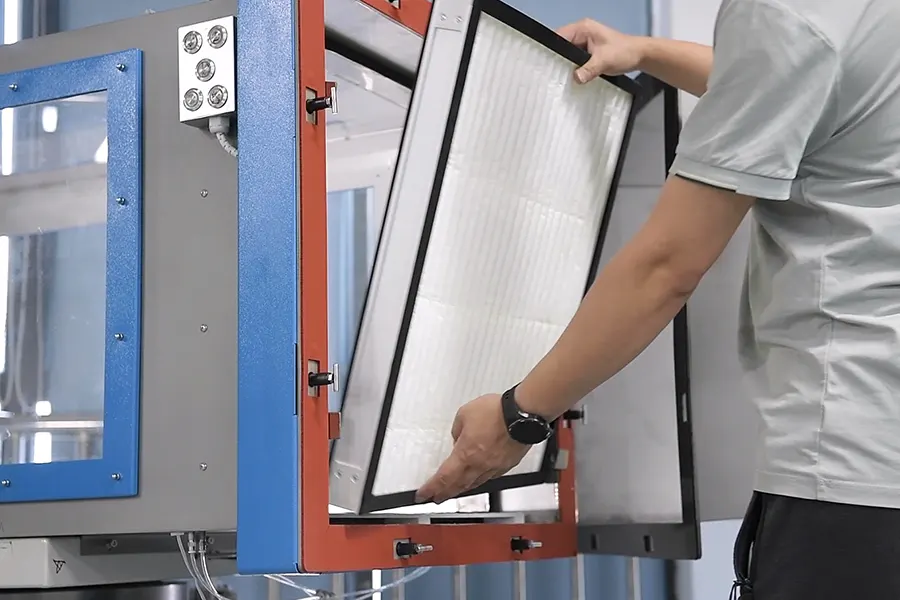

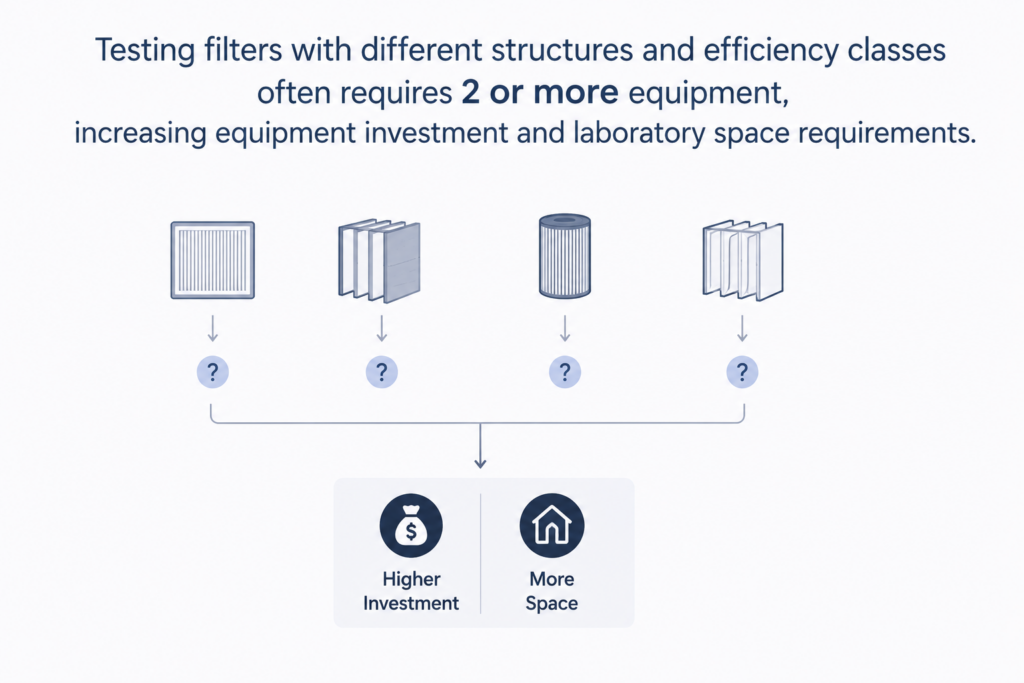

Testing filters with different structures and efficiency classes often requires separate test setups, increasing equipment complexity and laboratory space requirements.
Integrated multi-class testing system
One system supports testing of multiple filter types and efficiency classes — including G, F, EPA, and HEPA filters — through flexible test configurations and quick-change fixtures.
HVAC & General Ventilation Testing System Series
Testing systems designed for ISO 16890 and EN 779 filter performance evaluation.
Suitable for both laboratory testing and manufacturing quality control, the system supports automated ePM classification reporting and resistance measurement.
Designed for bag, panel, and V-bank filters used in HVAC and general ventilation systems, enabling reliable testing in both laboratory and production environments.
Filter Applications in HVAC & Ventilation Systems
Air filters tested by our systems are widely used in commercial, industrial, and laboratory ventilation environments.
Commercial & Public Facilities
Air filters used in commercial buildings and public facilities must meet ISO 16890 ePM classification requirements to ensure healthy indoor air quality.

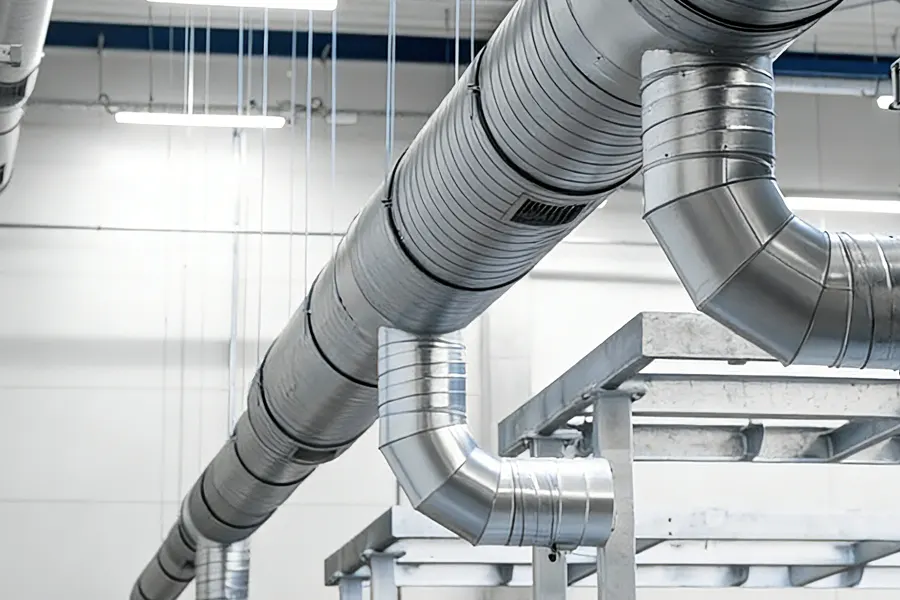

Industrial Ventilation Systems
Industrial ventilation systems rely on stable filter performance to handle high dust loads and continuous operation.

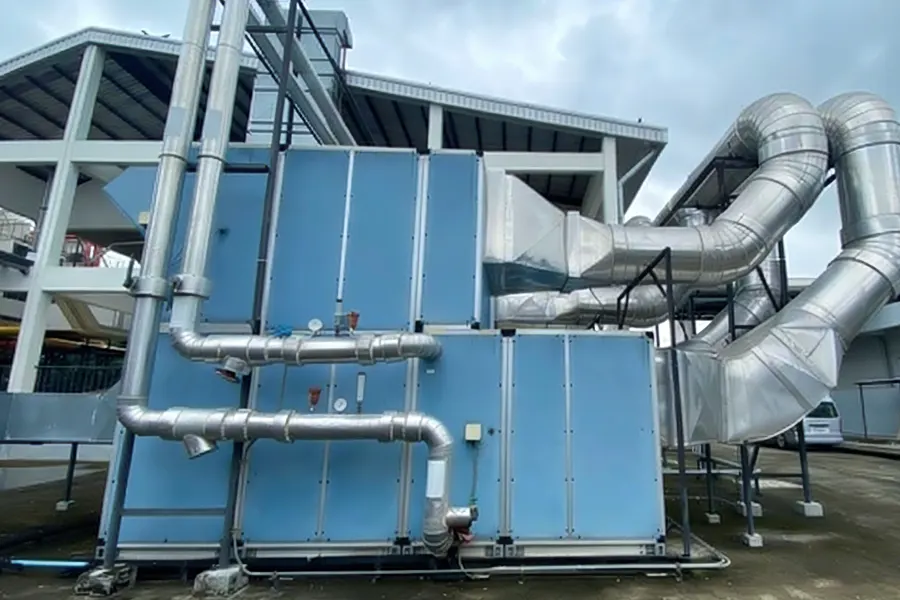

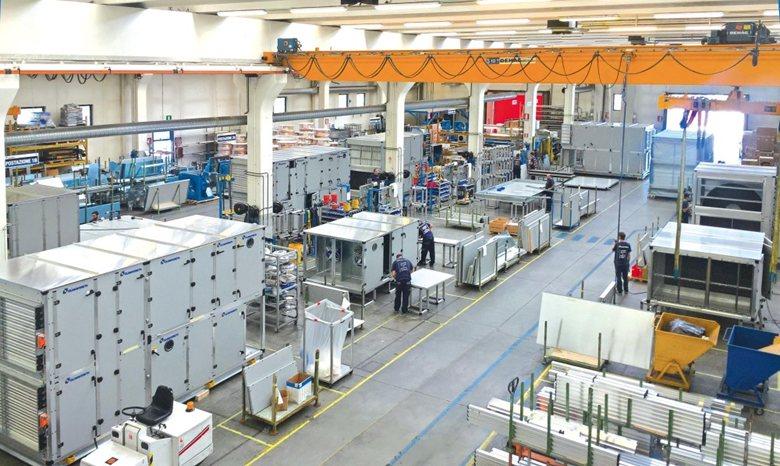

AHU Manufacturers
Air Handling Units require reliable and consistent filter performance to ensure stable airflow and filtration efficiency.
Accredited Laboratories
Laboratories perform standardized testing to evaluate filter performance according to international standards such as ISO 16890 and EN 779.

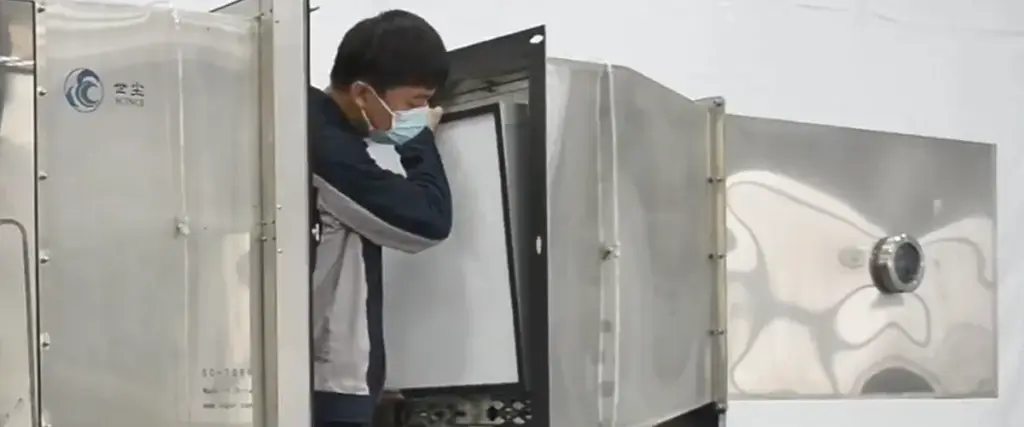

Integrated Platform for Multi-Class Filter Quality Control
An HVAC filter manufacturer producing panel, bag, and V-bank filters faced the challenge of meeting dual standards (ISO 16890 and EN 779) across multiple product lines.By adopting our integrated testing platform, they consolidated multiple testing processes into a single, streamlined workflow.The platform supports testing across multiple filter classes within a single system.
The Challenge
Multi-Standard Production Requirements： Manufacturers producing filters across multiple efficiency classes must comply with different market standards, often requiring separate testing setups and fragmented workflows.
Workflow Complexity: Switching between different testing systems for F6–H14 filters reduces production efficiency and increases operator training requirements.
The SCPUR Solution
Integrated Multi-Class Platform: A single system supports efficiency and resistance testing across the F6–H14 range, reducing the need for multiple testing setups.
Supplementary Integrity Testing

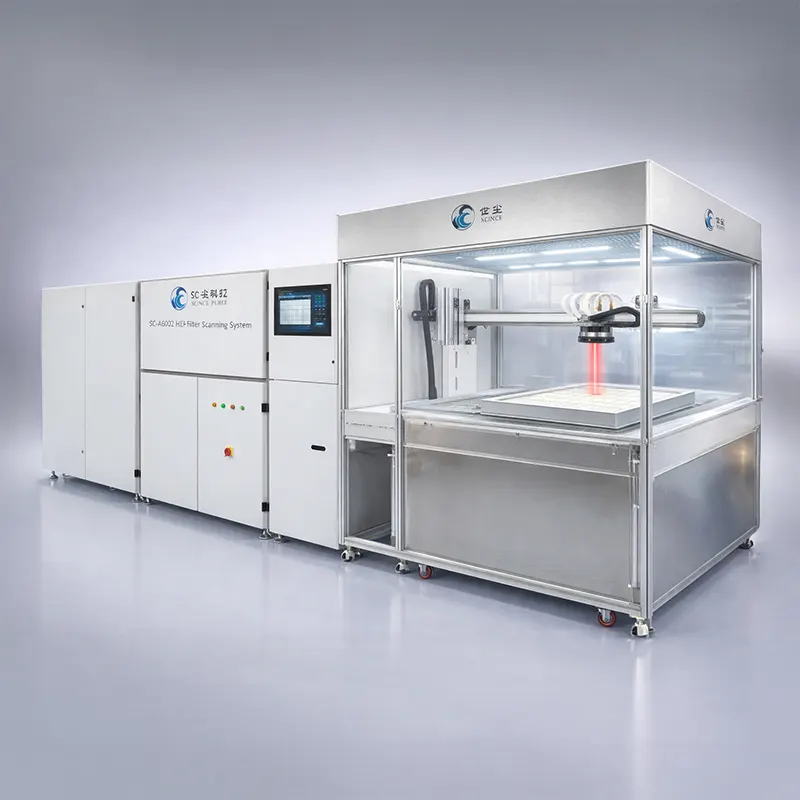

For high-grade filters such as H13, an optional scanning module enables integrity verification without requiring a full cleanroom test line.
Flexible Fixture System
Quick-change adapters allow testing of panel, bag, and V-bank filters on the same system.
“A single platform allowed us to manage quality control across all filter classes while maintaining compliance and reducing equipment investment.”
Full Lifecycle Support for Your Testing System
Custom Engineering Integration
We adapt software interfaces and fixture dimensions to integrate our systems into your production environment.
Professional System Commissioning
Our engineers provide installation, commissioning, and training to ensure reliable system operation.
ISO Calibration And Maintenance
Annual calibration services and spare parts support help maintain measurement reliability and minimize downtime.
