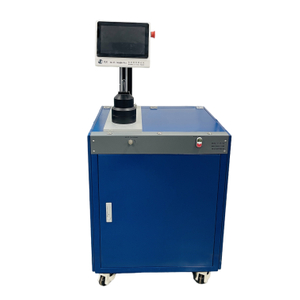

SC-FT-1406D-Plus
scince
Review
Used to test filter efficiency and resistance for filter material and mask.
Test flow is adjustable between 0 and 99.9 L/min.
Equipped with dual generators for oil and NaCl aerosol. According to GB 2626,
NIOSH 42 CFR 84 and EN149.
Calibrated with standard filter paper, the test result can be compared with TSI 8130.
Press two buttons one time, test will start to run automatically.
The single test time is less than 40 seconds.
Touch screen is designed with human—computer interaction, visually displayed.
Build—in ribbon printer, the result can be printed directly and saved for a long time.
If data acquisition software is selected, the report can be printed with A4 paper, and remote calibration is also available.
Simple operation, no special requirement for operator. Low maintenance cost.
SC-FT-1406DH is used to test high efficiency material due to higher sensitivity, which can reach 95—99.9993%.
Applications
Filter efficiency test for filter material and mask.
Resistance test for filter material and mask.
Test for filter element
Application | Filter Efficiency and Resistance Test |
Test Flow | 0~99.9L/Min |
Test Aerosol | Nacl and Paraffin Oil |
Test Area | 100cm² |
Resistance Range | 0~500PA |
Test Period | 30s |
Power supply | AC 220V, 50 or 60 HZ |
Dimensions | 740*740*1480mm |
